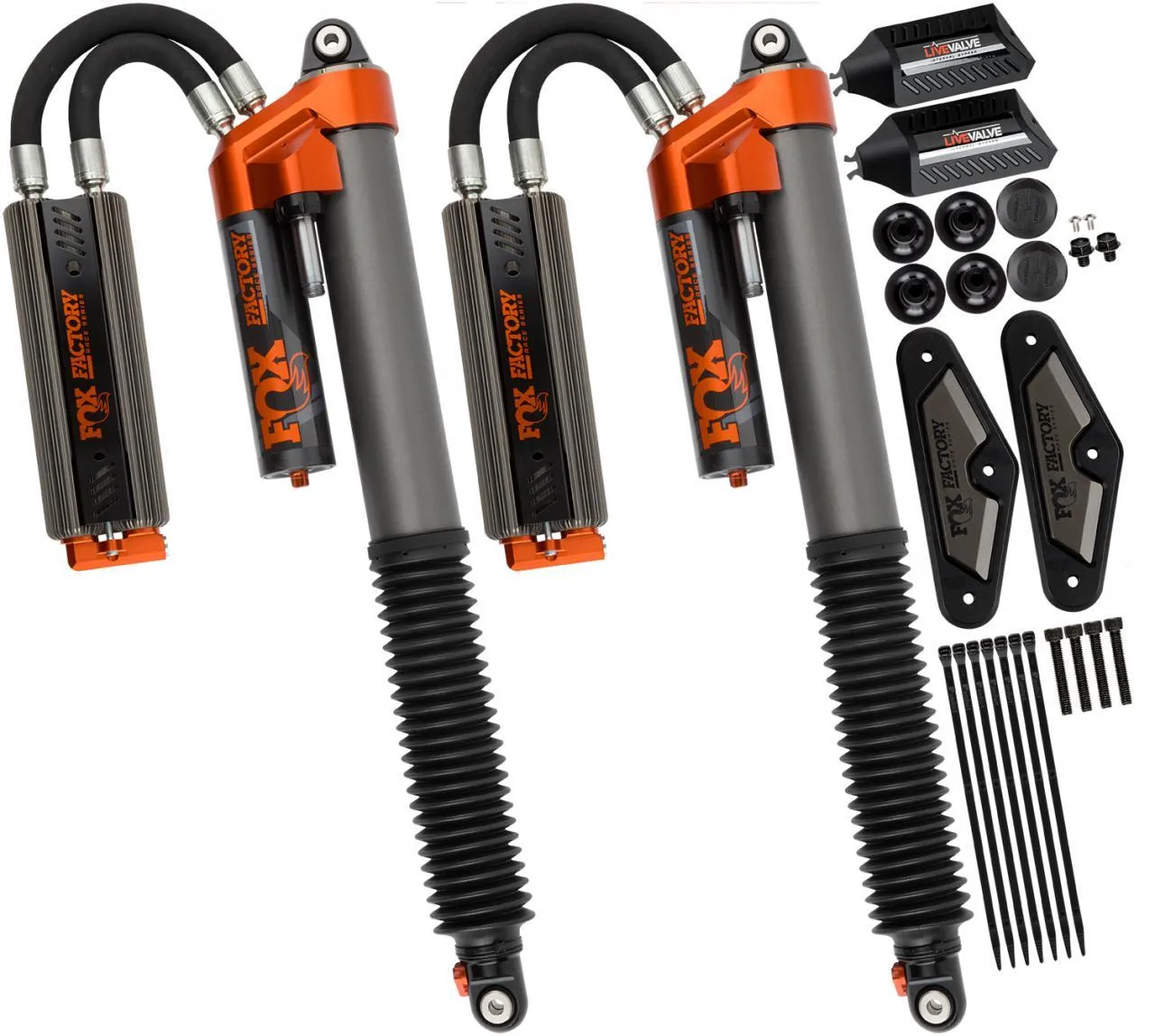

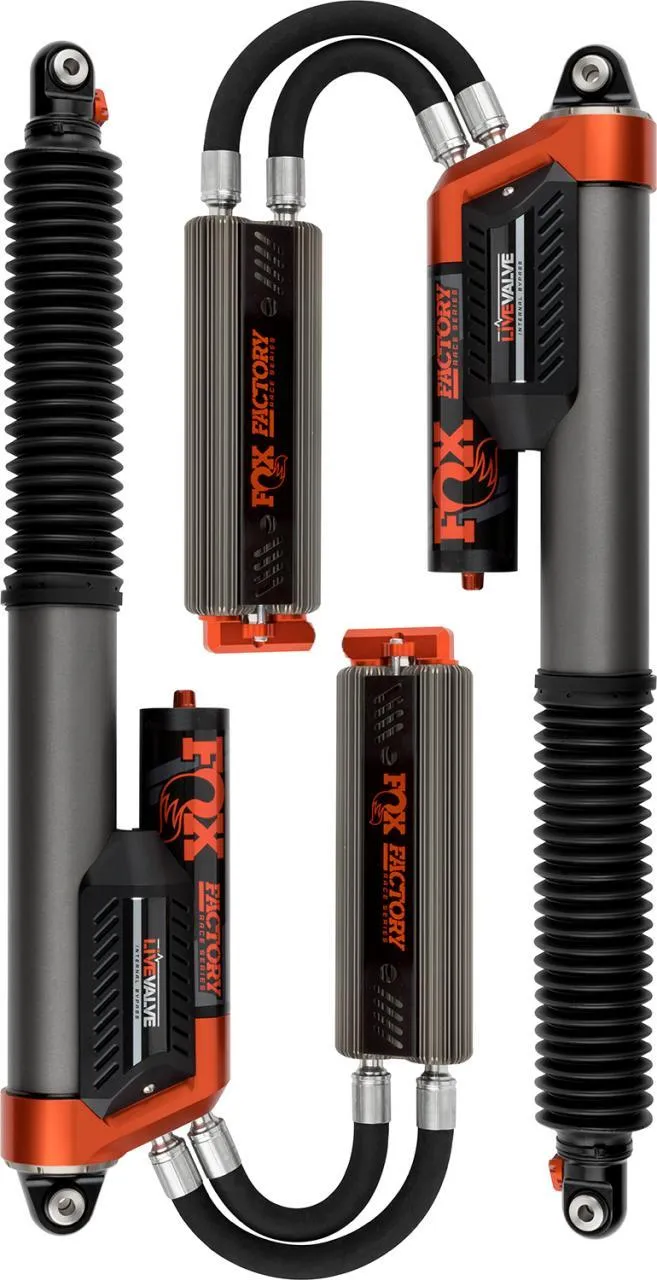

Fox 3.0 Live Valve Rear Shocks

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Our new three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

NEW Live Valve semi active technology equipped, plug and play integration to factory electronics
NEW Rebound and compression adjustable via Quick Switch Technology (QS3)
NEW Rotatable hose fittings for easy installation
FOX patented, position-sensitive Internal Bypass damping technology

Fitment Notes: External Cooling System (ECS2) mounting hardware included

Body	Hard 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
Body Plating	Hard-anodized for a durable finish

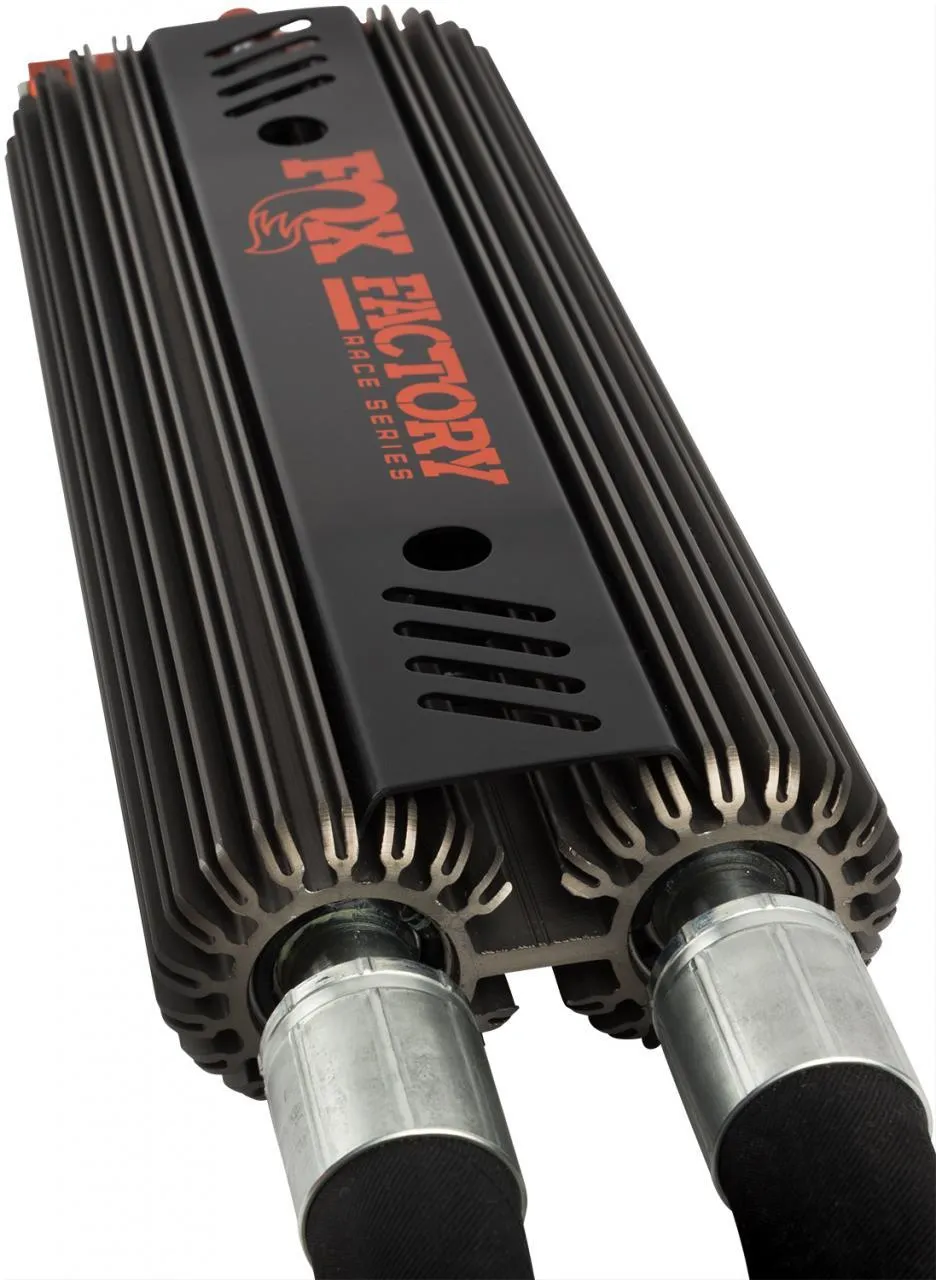

Reservoir	Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation.
Components	Anodized, CNC-machined 6061-T6 billet aluminum
Spring	Heavy duty 3.75" racing spring (fronts)
Shaft	7/8" hard chrome plated 17-4 H900 stainless steel
Piston	Hard anodized 6061-T6 billet aluminum high flow race piston
Valving	Application-specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
Oil	JM92 Advanced Suspension Fluid
Bearing	PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
Mounting	Heat treated steel spherical heim mounting

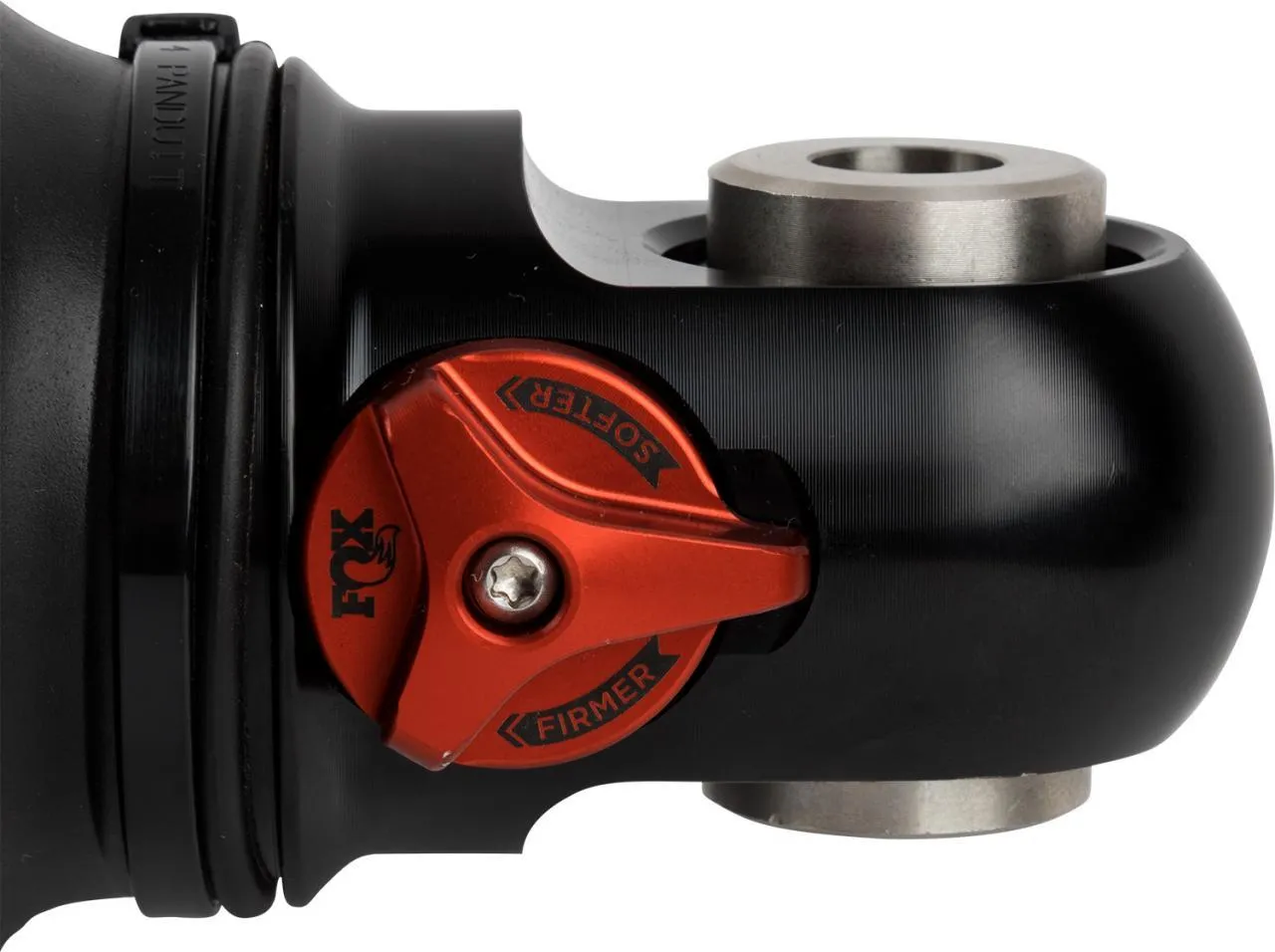

Adjustments	Adjustable ride-height/preload QS3 rebound and compression adjuster
Travel	12.170"
Compressed	18.980"
Extended	31.150"
Top Mount	Eyelet
Bottom Mount	Eyelet
